Pico Achieves 100 Mbps Ethernet Through Bit-Banging

Raspberry Pi Pico Breakthrough: Bit-Banged 100 Mbps Ethernet Transmission

The Raspberry Pi Pico, a micro-controller known for its versatility and cost-effectiveness, continues to surprise the embedded systems community. A recent development showcases its remarkable capabilities, with a new library enabling bit-banged 100 MBit/s Fast Ethernet transmission. This achievement pushes the boundaries of what’s typically expected from such a compact and accessible device, opening up new possibilities for network-enabled projects.

The Innovation Behind Pico-100BASE-TX

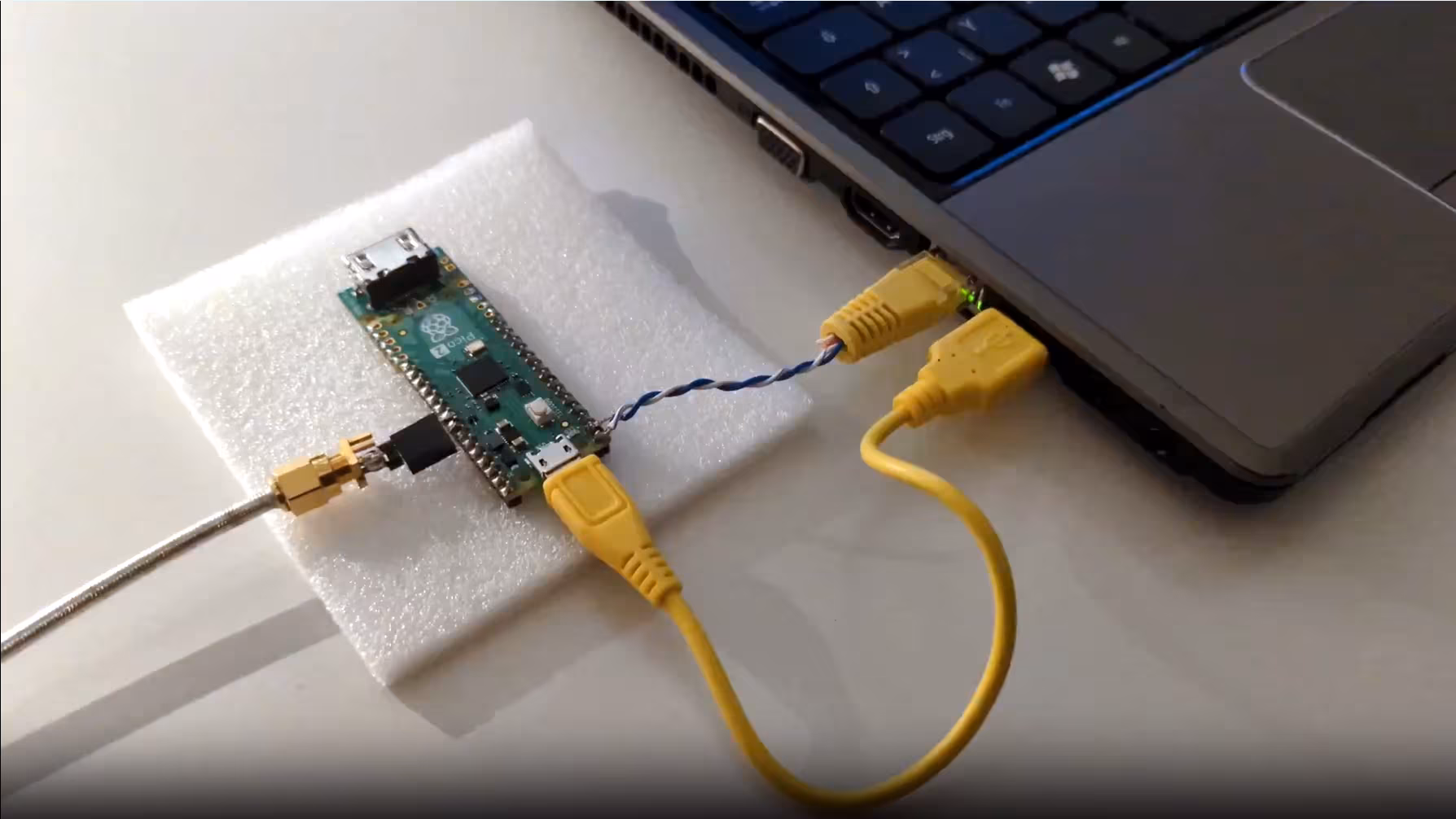

At the heart of this breakthrough is the Pico-100BASE-TX library, developed by [Steve]. This innovative software solution allows an RP2040 (or the newer RP2350) microcontroller, the core of the Raspberry Pi Pico, to communicate over a Fast Ethernet network at speeds of 100 Megabits per second. This is particularly impressive given that the Pico lacks dedicated hardware for Ethernet, relying instead on a technique known as “bit-banging.”

Bit-banging involves using general-purpose input/output (GPIO) pins to manually generate the complex timing and signaling required for a communication protocol. While common for slower protocols, achieving 100 Mbps Ethernet – a protocol with stringent timing requirements – through bit-banging is a significant engineering feat. It demonstrates a deep understanding of the RP2040’s Programmable I/O (PIO) state machines, which are crucial for handling the high-speed data streams.

Overcoming Hardware Limitations with Software Savvy

Traditional Ethernet communication relies on specialized transceivers and Media Access Control (MAC) hardware to manage the physical layer (PHY) and data link layer operations. The Raspberry Pi Pico, designed for general-purpose embedded applications, does not include these components. Steve’s Pico-100BASE-TX library effectively emulates the PHY layer in software, using the RP2040’s processing power and flexible PIO architecture.

This approach requires precise timing and efficient code execution to meet the specifications of the 100BASE-TX standard. The library manages to generate the necessary Manchester encoding and decoding, collision detection, and other low-level Ethernet functions entirely through software. This not only highlights the ingenuity of the developer but also the robust design of the RP2040 chip itself.

Implications for Embedded Systems and IoT

The ability to implement 100 Mbps Ethernet on a Raspberry Pi Pico without dedicated hardware has several significant implications:

• Cost-Effective Networking: It provides a highly economical way to add Fast Ethernet connectivity to projects where cost and board space are critical constraints. This could be particularly beneficial for industrial control, home automation, and various Internet of Things (IoT) applications.
• Enhanced Performance for Pico Projects: While Wi-Fi is common, wired Ethernet offers superior reliability, lower latency, and higher throughput in many scenarios. This development allows Pico-based projects to leverage these advantages without the need for external Ethernet controllers.
• Educational Value: The open-source nature of such projects serves as an excellent educational resource, demonstrating advanced microcontroller programming techniques and the principles of network communication.
• Prototyping and Development: Engineers and hobbyists can rapidly prototype network-enabled devices using the familiar and accessible Raspberry Pi Pico ecosystem, reducing development cycles.

Technical Deep Dive: The Role of PIO

The RP2040’s Programmable I/O (PIO) state machines are central to this accomplishment. Unlike traditional GPIOs, PIO allows users to define custom hardware-like state machines that can operate independently of the main CPU. These state machines can manipulate GPIO pins at very high speeds and with precise timing, making them ideal for bit-banging complex protocols like Ethernet.

Steve’s implementation likely leverages PIO to manage the intricate signaling patterns of 100BASE-TX, offloading this demanding task from the main CPU. This allows the CPU to focus on higher-level application logic while the PIO handles the real-time demands of network communication. The library would also need to implement a software-based MAC layer to handle framing, error checking, and addressing.

Key Takeaways

• A new library, Pico-100BASE-TX, enables 100 MBit/s Fast Ethernet on Raspberry Pi Pico.
• This is achieved through “bit-banging” using the RP2040’s general-purpose I/O and Programmable I/O (PIO) state machines.
• The innovation bypasses the need for dedicated Ethernet hardware, offering a cost-effective networking solution.
• It opens up new possibilities for high-performance, wired network applications in embedded systems and IoT.
• The project highlights the power and flexibility of the Raspberry Pi Pico’s RP2040 microcontroller.

Conclusion

The successful implementation of bit-banged 100 MBit/s Ethernet on the Raspberry Pi Pico by Steve is a testament to the ongoing innovation within the embedded systems community. It underscores the incredible potential of microcontrollers like the RP2040 when coupled with ingenious software development. This breakthrough not only expands the capabilities of the Pico but also provides a compelling, low-cost option for integrating high-speed wired networking into a diverse range of projects, from industrial applications to advanced hobbyist endeavors. As embedded systems continue to evolve, such clever solutions will undoubtedly drive further advancements in connectivity and functionality.
